Rescue Radar LS-RR04MiniOverview
New model LS-RR04Mini for searching of live human persons invisible for visual detection under obstruction of broken buildings, soil, snow etc. as well as persons hidden in buildings, containers by detecting his breath, movement, and displays the distance and direction (when using two units) to survivors. High sensitivity to person movement (up to 30m) and breathing (up to 10m) in free space.
Device have been used to search for survivors in the following disasters:
Great East Japan Earthquake, Great Sichuan Earthquake, Turkey-Syria Earthquake etc.
Users: Japan Disaster Relief Team (JDR), Tokyo Hyper Rescue Team etc.

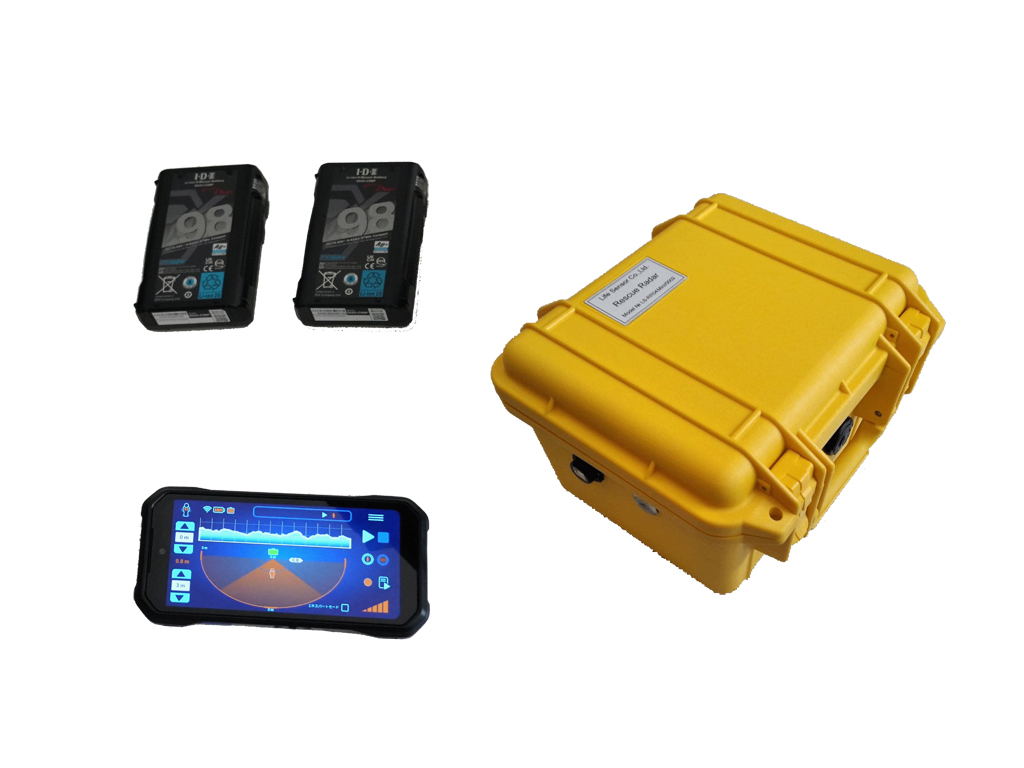

Configuration 1D
(a) Main unit (antenna part) 1
(b) rugged PC or tablet (data display) 1
(c) Dedicated USB cable (5m) 1
(d) Batteries for the main unit 1 (option 2 for 24 hours work)
(e) Battery charger 1
| SPEC (Main unit) |
| Model |
LS-RR04Mini |
| Size |
300х270х175 mm |
| Weight |
3 kg (without battery) |
| Power |
DC 12-16V |
| Detection zone |
0-30 m (free space) |
| Set contains |
Main unit, USB cable (5m), rugged pc or tablet |
| PC or tablet connection |
Wireless (wireless LAN)
Wired (USB cable) |
Configuration 2D
(a) Main unit (antenna part) 2
(b) rugged PC or tablet (data display) 1
(c) Dedicated 2D USB cable (4m) 1
(d) Batteries for the main units 2 (option 4 for 24 hours work)
(e) Battery charger 2 |
